Product Overview

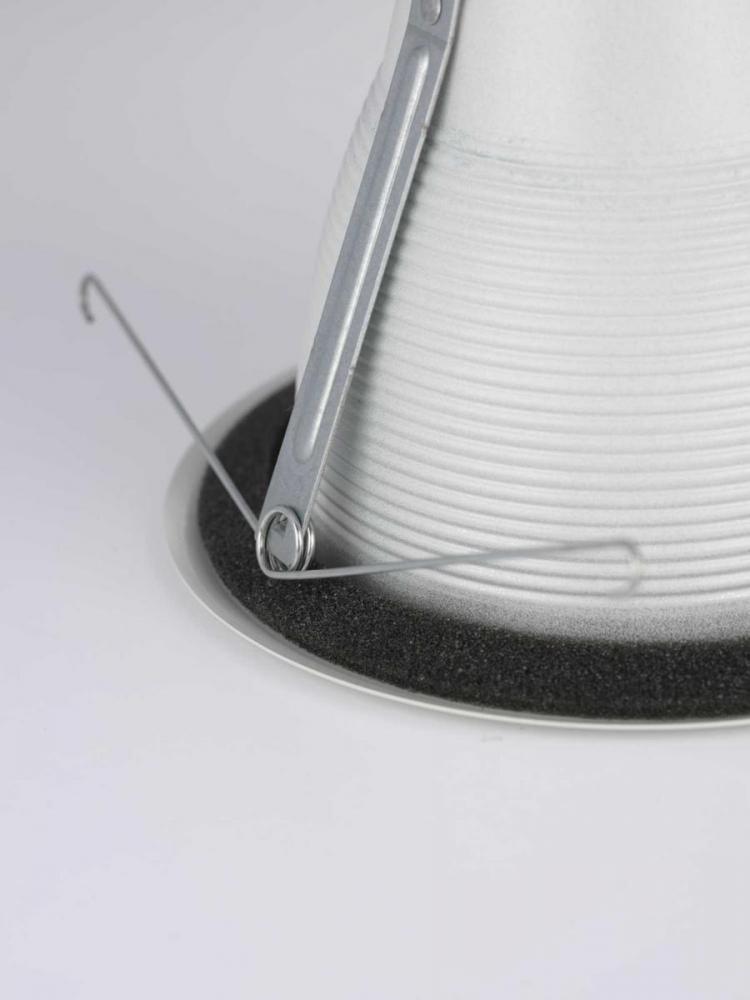

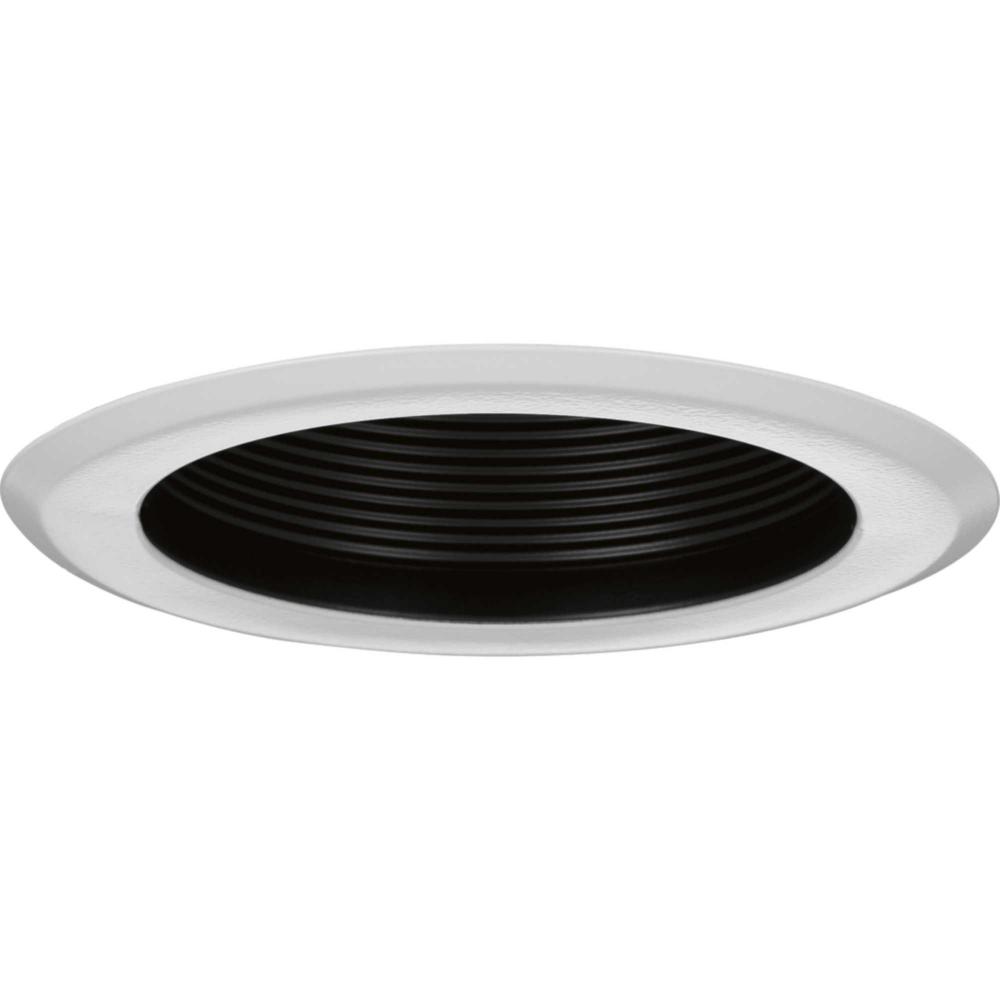

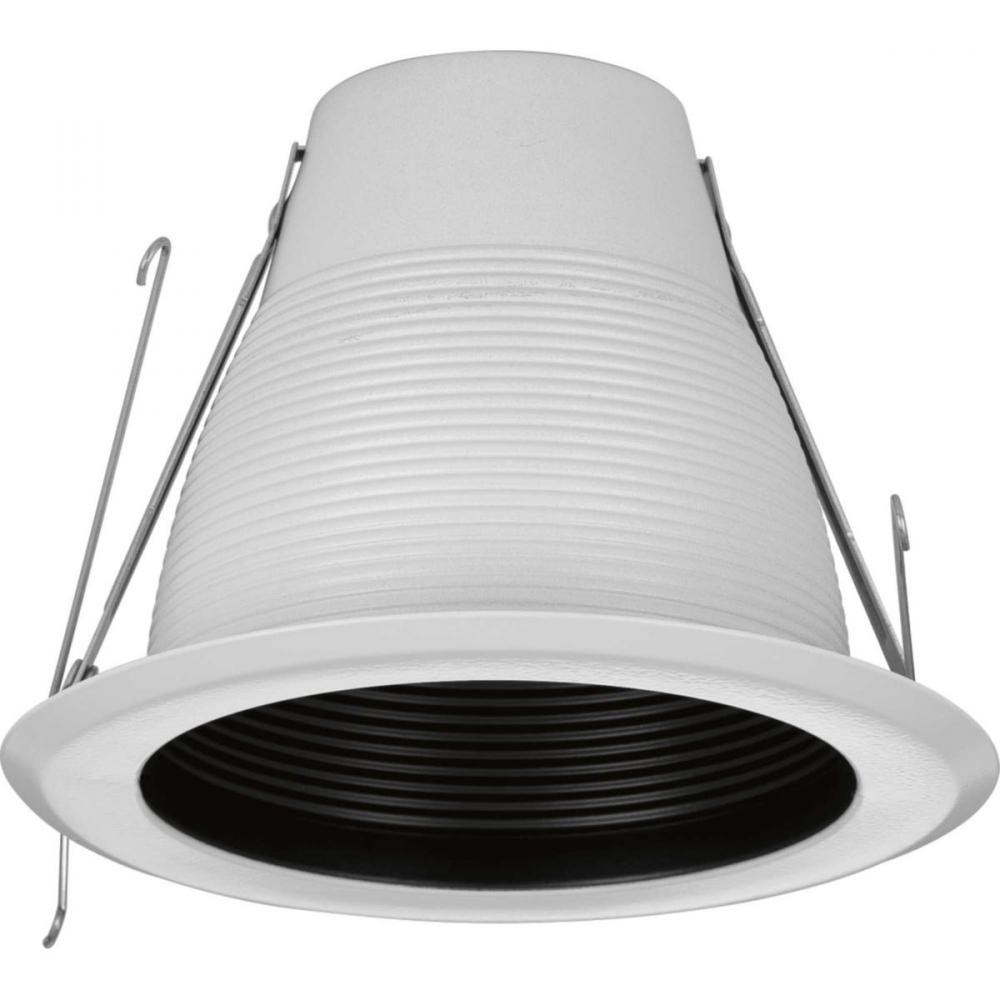

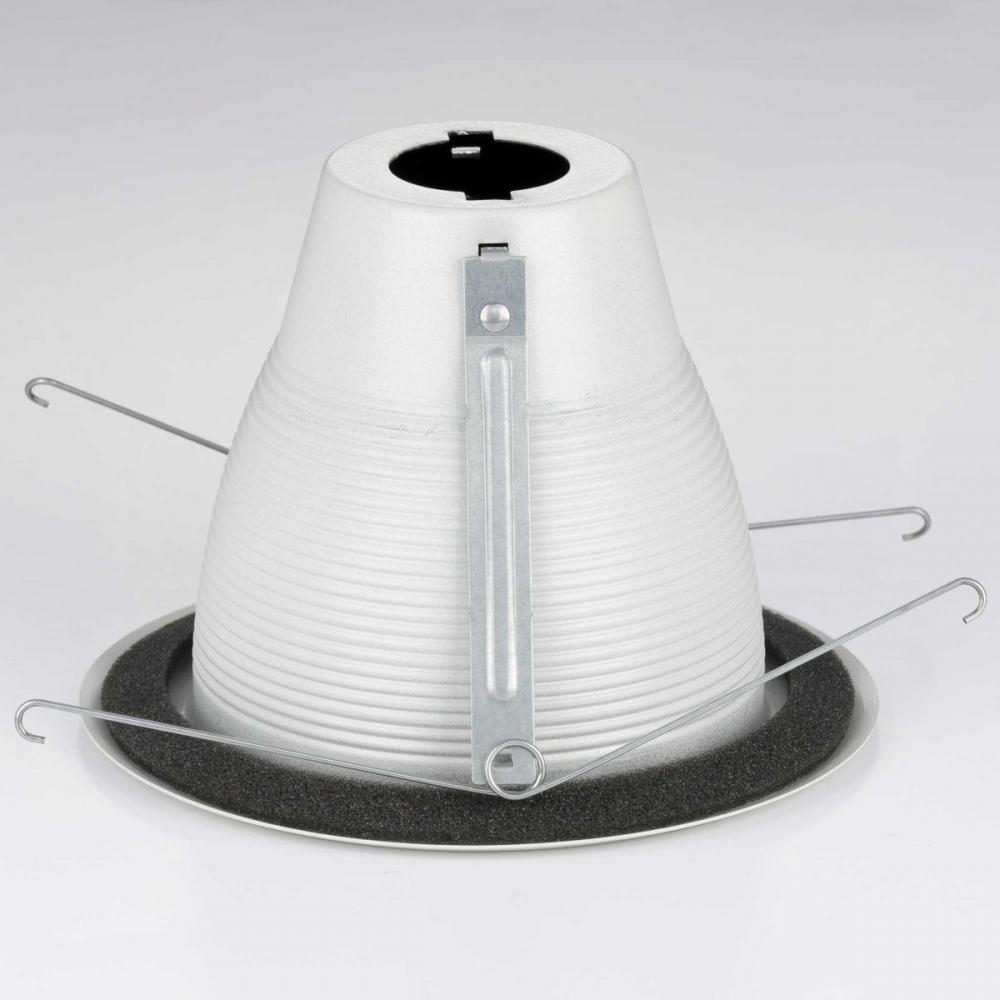

5" Step Baffle Trim in a Black finish and bright white powdered painted metal flange. UL and CUL listed for damp locations. The trim uses friction springs to attach to the housing to provide a flush fit against the ceiling. Compatible for use in Progress P851-ICAT.

Standard Information

Category:

Recessed Ltg.

Subcategory:

Recessed Lighting Trims

Finish:

Black

Style:

Traditional

Option:

Damp Rated

Title 20

Voltage:

100-120

Mount Type:

Chain

Location Rating:

Damp Rated

Refinement Options

Category:

Recessed-Trim

Finish:

Black

Option:

Damp Rated

Title 20

Family:

5" Recessed Trim

Voltage:

120

Introduction Date:

06/01/2019

Keyword(s):

recessed trimrecessed light;downloght;ceiling trim;recessed

Length:

6.50

Material:

Aluminum

Ship Carton Height:

18.50

Ship Carton Length:

13.87

Ship Carton Width:

9.00

Ship Weight:

5.74

Special Features:

5" Step Baffle Trim with Black finish;Bright white powdered painted metal flange;Use a PAR30/R30 bulb, 50 watt max.;Trim is only compatible with P851-ICAT;No light leaks around trim flange;Damp Location Listed;Uses friction springs to attach to the hou

Vendor Ship Method:

Non UPS Shippable False

Warranty:

1-year Limited

Weight:

0.06

Americans with Disabilities Act:

No

Bulb Included:

No

Can be Mounted Up or Down:

No

Certified Listed Location:

Damp Location Listed

Construction Material Main Part:

Construction

Convertible Fixture Includes Both Mounts:

FALSE

Country of Origin:

CN

Dark Sky:

No

Design Series:

No

Energy Efficient:

No

Energy Star:

No

Finish Type:

Painted

Frequency Rating:

60 Hz

Grounded Convenience Outlet included:

No

JA8:

No

Mount Location:

recessed

Prop 65:

View

Room Type:

Bedroom;Closets;Garage;Hall & Foyer;Kitchen;Sitting Room

Safety Rating:

cULus

Title 20:

Yes

Title 24:

No

Width Diameter:

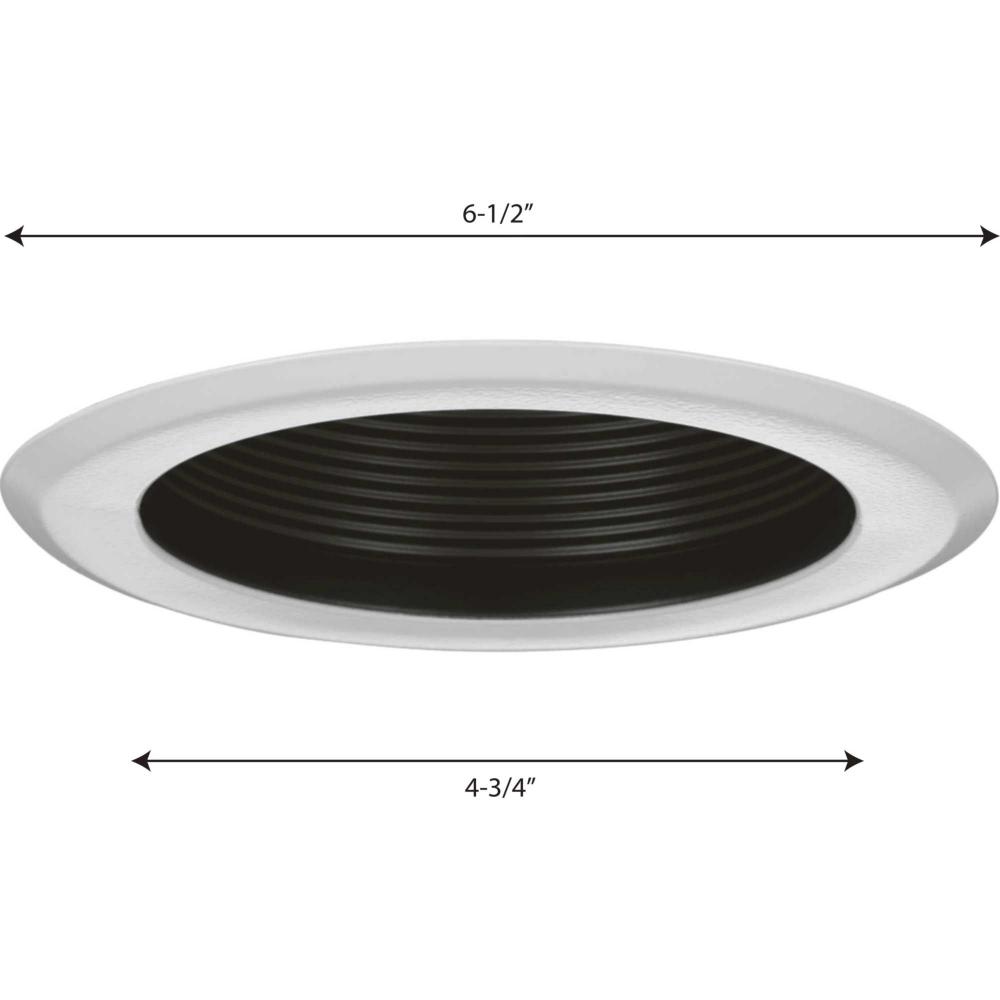

6.5 in dia.
